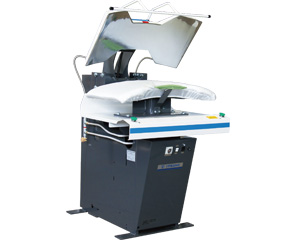

Shirt Finisher

SC-500AS
Double Collar Press

An essential item as a white coat double body presser. An all-round presser capable of double collar press and rework.

Double Collar Press

Feature

A beautiful silhouette deriving from an ideal iron shape.
Elegant and easy-to-set finishing deriving from an ideal iron curve.
It is possible to give the simultaneous finishing to the back and forth of a white coat and to use for rework.
Work to set a shirt back and forth was made more comfortable than before by widening an opening angle of the upper iron.

High pressure and quick action
Presses out the wrinkles by means of powerful pressure deriving from a large size pneumatic cylinder.
Achieved not only the minimization of a trouble occurrence but also speedy move by a dual cylinder system.
Achieve a reliable long life by means of the newly developed high intensity frame.

Rich function
Safety design such as the safety bar of the upper iron and a start button having a function to cancel operation in case of releasing.
Automatic cancellation timer capable of setting the finishing time easily.
Improved usability by adopting a new intrepid design.

Detailed information

Model number SC-500AS
Product name Double Collar Press
Power supply Voltage AC200 V
Phase 3 phase
Frequency 50/ 60 Hz (common)
Power consumption -
Driving power -
Vacuum -
Heat wind -
Heater -
Steam Standard use 0.5 MPa
Max. supply 0.7 MPa
Consumption -
Inlet diameter 1/2 inch
Outlet diameter 1/2 inch
Air Consumption -
Working pressure 0.5 MPa
Inlet diameter -
Mechanical dimension Width 800 mm
Depth 1051 mm
Height 1188 mm
Exhaust diameter
Weight 320 Kg
